Details
- •Low-voltage control systems
- •Switch disconnector (AC)
- •1 KOM
- •ABB
Technical specifications
Number of switches1
Number of auxiliary contacts as change-over contact0
Version as emergency stop installationNo
Motor drive integratedNo
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq-kA
Version as safety switchNo
InterlockableYes
Degree of protection (IP), front sideIP20
Type of control elementNone
Rated operation power at AC-23, 400 V7.5kW
Rated short-time withstand current lcw0.5kA
Version as maintenance-/service switchYes
Rated operating voltage750 - 750V
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Version as main switchYes
Suitable for floor mountingNo
Suitable for intermediate mountingNo
Colour control elementBlack
Motor drive optionalNo
Suitable for front mounting 4-holeYes
Max. rated operation voltage Ue AC750V
Version as reversing switchNo
Degree of protection (NEMA)1
Rated permanent current at AC-21, 400 V16A
Device constructionBuilt-in device plug-in technique
Switching power at 400 V7.5kW
Suitable for front mounting centreNo
Rated permanent current at AC-23, 400 V16A
Voltage release optionalNo
Rated permanent current Iu16A
Number of poles4
Suitable for floor mountingYes
Suitable for distribution board installationYes
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

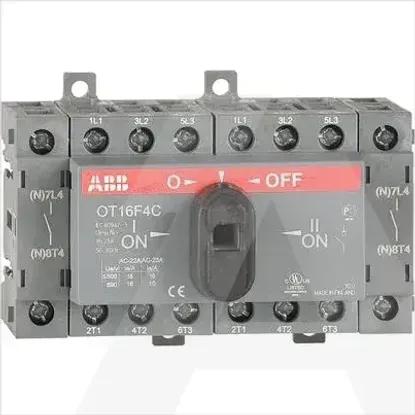

1SCA104831R1001 | OT16F4C
