Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Rated permanent current Iu400A
Number of poles3
Suitable for fusesNH0, NH1, NH2
Conditioned rated short-circuit current Iq80kA
Cable entryOther
Type of electrical connection of main circuitBolt connection
Version as safety switchYes
Version as main switchYes
Rated operation power at AC-23, 400 V400kW
Type of control elementLong turning handle
Version as emergency stop installationNo
Motor drive integratedNo
Rated short-time withstand current lcw14kA
Suitable for floor mountingNo
Suitable for front mountingNo
With error protectionNo
Motor drive optionalNo
Equipped with connectorsYes
Max. rated operation voltage Ue AC1000V
Suitable for busbar mountingYes
Position control elementLeft
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

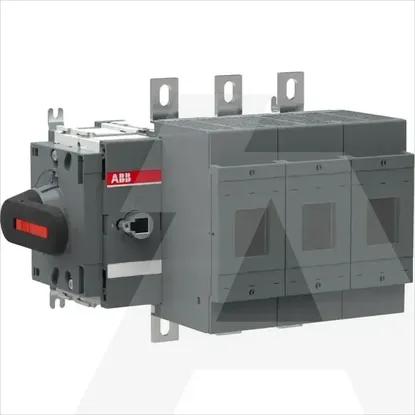

1SCA105108R1001 | OS400DS03K
