Details

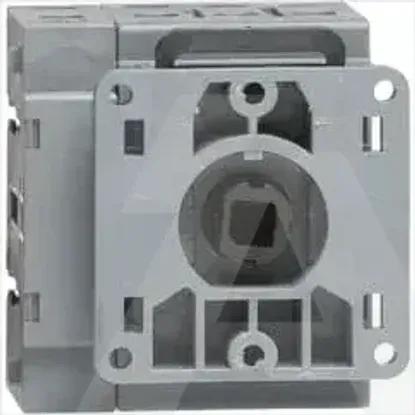

- •RASTAVNA SKLOPKA OT, CETVEROPOLNA, 16/16(AC22A/AC2
- •Low-voltage control systems
- •Switch disconnector (AC)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq-kA
Rated operating voltage750 - 750V
Motor drive integratedNo
Version as maintenance-/service switchYes
Number of switches-
Degree of protection (IP), front sideIP20
InterlockableNo
Version as main switchYes
Rated operation power at AC-23, 400 V7.5kW
Version as safety switchNo
Type of electrical connection of main circuitScrew connection
Type of control elementNone
Version as emergency stop installationNo
Rated short-time withstand current lcw0.5kA
Motor drive optionalNo
Suitable for intermediate mountingNo
Suitable for distribution board installationYes
Suitable for floor mountingNo
Suitable for front mounting 4-holeNo
Rated permanent current at AC-21, 400 V16A
Degree of protection (NEMA)1
Version as reversing switchNo
Switching power at 400 V7.5kW
Voltage release optionalNo
Colour housingGrey
Material housingPlastic
Suitable for front mounting centreYes
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-23, 400 V16A
Rated permanent current Iu16A
Number of poles4
Max. rated operation voltage Ue AC750V
