Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Conditioned rated short-circuit current Iq80kA
Cable entryOther
Number of poles3
Rated permanent current Iu720A
Type of control elementLong turning handle
Type of electrical connection of main circuitBolt connection
Motor drive integratedNo
Version as main switchYes
Version as emergency stop installationNo
Suitable for fusesNH3
Suitable for busbar mountingYes
Rated short-time withstand current lcw18kA
With error protectionNo
Suitable for front mountingNo
Suitable for floor mountingNo
Max. rated operation voltage Ue AC1000V
Version as safety switchYes
Rated operation power at AC-23, 400 V710kW
Position control elementRight
Equipped with connectorsYes
Motor drive optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

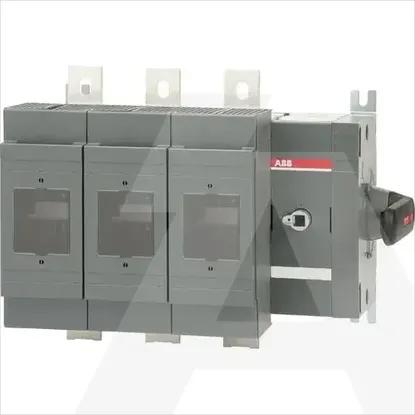

1SCA108099R1001 | OS800DS30K
