Details
- •Low-voltage industrial components

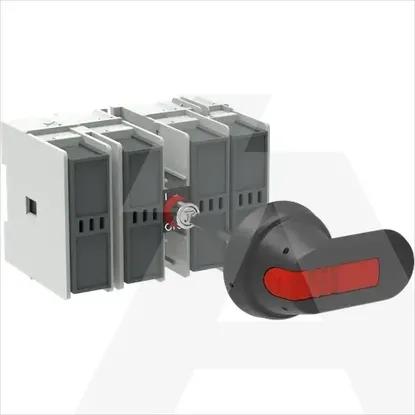

- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Suitable for fuses14x51 mm
Conditioned rated short-circuit current Iq80kA
Number of poles4
Rated permanent current Iu32A
Motor drive integratedNo
Type of control elementShort thumb-grip
Type of electrical connection of main circuitScrew connection
Version as emergency stop installationNo
Suitable for floor mountingNo
Rated short-time withstand current lcw1kA
Suitable for front mountingNo
Version as safety switchYes
Version as main switchYes
Rated operation power at AC-23, 400 V22kW
Max. rated operation voltage Ue AC1000V
Motor drive optionalNo
Suitable for busbar mountingYes
With error protectionNo
Position control elementFront side
Equipped with connectorsYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA108643R1001 | OS32FF2214F
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Cable entry
Other
Suitable for fuses
14x51 mm
Conditioned rated short-circuit current Iq
80kA
Number of poles
4
Rated permanent current Iu
32A
Motor drive integrated
Type of control element
Short thumb-grip
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
Suitable for floor mounting
Rated short-time withstand current lcw
1kA
Suitable for front mounting
Version as safety switch
Version as main switch
Rated operation power at AC-23, 400 V
22kW
Max. rated operation voltage Ue AC
1000V
Motor drive optional
Suitable for busbar mounting
With error protection
Position control element
Front side
Equipped with connectors
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
