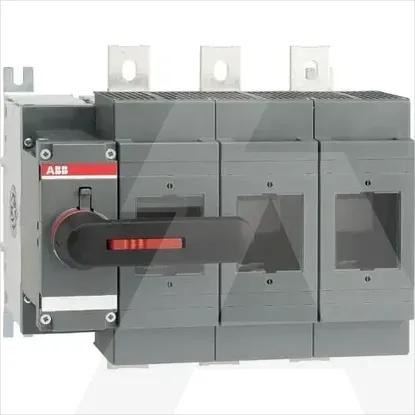

1SCA108704R1001 | OS630D03K
Code: 1525109
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Number of poles3
Type of control elementLong turning handle
Rated permanent current Iu570A
Motor drive integratedNo
Type of electrical connection of main circuitBolt connection
Motor drive optionalNo
Suitable for floor mountingNo
Conditioned rated short-circuit current Iq80kA
Max. rated operation voltage Ue AC1000V
Rated short-time withstand current lcw18kA
Cable entryOther
Version as main switchYes
Version as emergency stop installationNo
Version as safety switchYes
Rated operation power at AC-23, 400 V630kW
Suitable for front mountingNo
With error protectionNo
Suitable for busbar mountingYes
Suitable for fusesNH3
Position control elementLeft
Equipped with connectorsYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA108704R1001 | OS630D03K
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Number of poles
3
Type of control element
Long turning handle
Rated permanent current Iu
570A
Motor drive integrated
Type of electrical connection of main circuit
Bolt connection
Motor drive optional
Suitable for floor mounting
Conditioned rated short-circuit current Iq
80kA
Max. rated operation voltage Ue AC
1000V
Rated short-time withstand current lcw
18kA
Cable entry
Other
Version as main switch
Version as emergency stop installation
Version as safety switch
Rated operation power at AC-23, 400 V
630kW
Suitable for front mounting
With error protection
Suitable for busbar mounting
Suitable for fuses
NH3
Position control element
Left
Equipped with connectors
