Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Suitable for fusesNH000
Cable entryOther
Conditioned rated short-circuit current Iq80kA
Rated permanent current Iu40A
Type of electrical connection of main circuitScrew connection
Number of poles3
Motor drive integratedNo
Rated operation power at AC-23, 400 V30kW
Version as safety switchYes
Type of control elementShort thumb-grip
Version as main switchYes
Version as emergency stop installationNo
Rated short-time withstand current lcw1kA
With error protectionNo
Suitable for floor mountingNo
Max. rated operation voltage Ue AC1000V
Suitable for busbar mountingYes
Position control elementFront side
Motor drive optionalNo
Suitable for front mountingNo
Equipped with connectorsYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

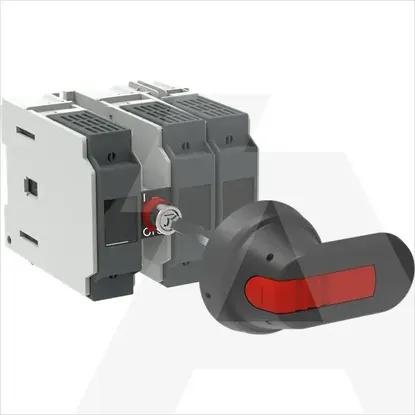

1SCA108914R1001 | OS40FD12000
