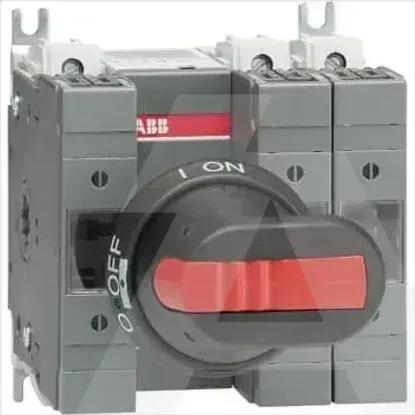

Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Number of poles3
Conditioned rated short-circuit current Iq80kA
Cable entryOther
Rated permanent current Iu32A
Version as main switchYes
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Suitable for busbar mountingYes
Suitable for fusesNH000
With error protectionNo
Rated operation power at AC-23, 400 V22kW
Max. rated operation voltage Ue AC1000V
Equipped with connectorsYes
Version as safety switchYes
Type of control elementLong turning handle
Position control elementFront side
Suitable for floor mountingNo
Rated short-time withstand current lcw2.5kA
Motor drive optionalNo
Version as emergency stop installationNo
Suitable for front mountingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA114581R1001 | OS32GD12P
