Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Conditioned rated short-circuit current Iq80kA
Cable entryOther
Type of electrical connection of main circuitScrew connection
Rated permanent current Iu32A
Motor drive integratedNo
Suitable for fusesNH000
Number of poles4
Type of control elementLong turning handle
Version as main switchYes
Version as emergency stop installationNo
Version as safety switchYes
Suitable for front mountingNo
Suitable for floor mountingNo
Equipped with connectorsYes
With error protectionNo
Position control elementFront side
Motor drive optionalNo
Max. rated operation voltage Ue AC1000V
Suitable for busbar mountingYes
Rated short-time withstand current lcw2.5kA
Rated operation power at AC-23, 400 V22kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

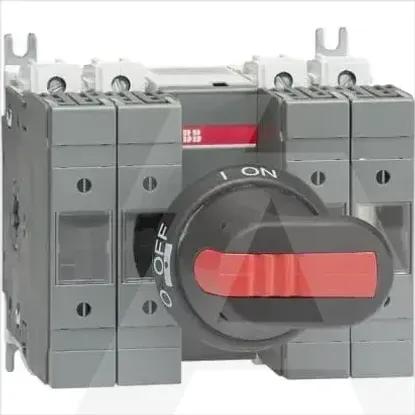

1SCA115202R1001 | OS32GD22N2P
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Conditioned rated short-circuit current Iq
80kA
Cable entry
Other
Type of electrical connection of main circuit
Screw connection
Rated permanent current Iu
32A
Motor drive integrated
Suitable for fuses
NH000
Number of poles
4
Type of control element
Long turning handle
Version as main switch
Version as emergency stop installation
Version as safety switch
Suitable for front mounting
Suitable for floor mounting
Equipped with connectors
With error protection
Position control element
Front side
Motor drive optional
Max. rated operation voltage Ue AC
1000V
Suitable for busbar mounting
Rated short-time withstand current lcw
2.5kA
Rated operation power at AC-23, 400 V
22kW
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
