Details
- •Low-voltage control systems

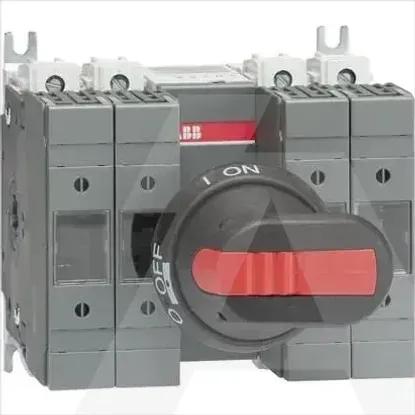

- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Conditioned rated short-circuit current Iq80kA
Cable entryOther
Suitable for front mountingNo
Motor drive integratedNo
Type of control elementLong turning handle
Version as emergency stop installationNo
Equipped with connectorsYes
Type of electrical connection of main circuitScrew connection
Version as safety switchYes
Suitable for floor mountingNo
With error protectionNo
Rated operation power at AC-23, 400 V55kW
Motor drive optionalNo
Version as main switchYes
Suitable for busbar mountingYes
Rated short-time withstand current lcw2.5kA
Position control elementFront side
Suitable for floor mountingYes
Rated permanent current Iu63A
Number of poles4
Suitable for fusesNH000
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA115232R1001 | OS63GD22FP
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage control systems
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Conditioned rated short-circuit current Iq
80kA
Cable entry
Other
Suitable for front mounting
Motor drive integrated
Type of control element
Long turning handle
Version as emergency stop installation
Equipped with connectors
Type of electrical connection of main circuit
Screw connection
Version as safety switch
Suitable for floor mounting
With error protection
Rated operation power at AC-23, 400 V
55kW
Motor drive optional
Version as main switch
Suitable for busbar mounting
Rated short-time withstand current lcw
2.5kA
Position control element
Front side
Suitable for floor mounting
Rated permanent current Iu
63A
Number of poles
4
Suitable for fuses
NH000
Max. rated operation voltage Ue AC
1000V
