Details
- •Low-voltage control systems
- •Switch disconnector (AC)
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Height250mm
Depth312mm
Width415mm
Number of switches-
Width in number of modular spacings-
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact0
Degree of protection (IP), front sideOther
Number of auxiliary contacts as normally open contact0
Rated operating voltage1000 - 1000V
Type of control elementLong turning handle
Type of electrical connection of main circuitBolt connection
Version as emergency stop installationNo
Rated short-time withstand current lcw20kA
Version as main switchYes
Version as maintenance-/service switchNo
InterlockableYes
Version as safety switchNo
Rated operation power at AC-23, 400 V355kW
Suitable for floor mountingNo
Degree of protection (NEMA)1
Voltage release optionalNo
Suitable for distribution board installationYes
Switching power at 400 V355kW
Suitable for front mounting 4-holeYes
Rated permanent current at AC-21, 400 V630A
Suitable for front mounting centreNo
Rated permanent current at AC-23, 400 V630A
Suitable for intermediate mountingNo
Device constructionBuilt-in device fixed built-in technique
Version as reversing switchNo
With pre-assembled cablingNo
Colour housingGrey
Material housingPlastic
Motor drive integratedYes
Colour control elementBlack
Motor drive optionalNo
Rated permanent current Iu630A
Number of poles3
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

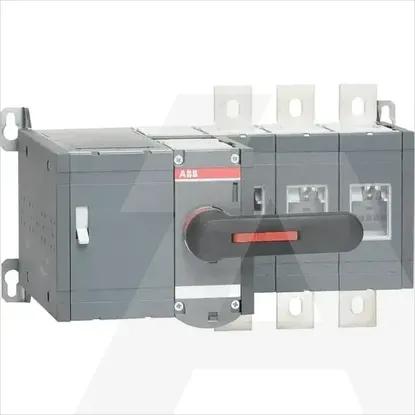

1SCA115354R1001 | OTM630E3M230C
