Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Conditioned rated short-circuit current Iq80kA
Cable entryOther
Rated permanent current Iu160A
Number of poles3
Suitable for fusesNH000, NH00
Motor drive integratedNo
Position control elementFront side
Equipped with connectorsYes
Max. rated operation voltage Ue AC1000V
Rated short-time withstand current lcw5kA
Suitable for front mountingNo
Type of electrical connection of main circuitBolt connection
With error protectionNo
Version as safety switchYes
Version as emergency stop installationNo
Rated operation power at AC-23, 400 V132kW
Motor drive optionalNo
Type of control elementLong turning handle
Version as main switchYes
Suitable for floor mountingNo
Suitable for busbar mountingYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

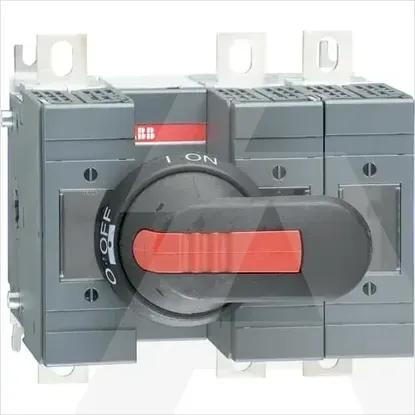

1SCA115643R1001 | OS160GD12P
