Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Width145.5mm
Height150mm
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu160A
Number of poles3
Rated operation power at AC-3, 400 V-kW
Rated operating voltage1000 - 1000V
Depth107mm
Conditioned rated short-circuit current Iq-kA
Degree of protection (IP), front sideOther
Number of auxiliary contacts as change-over contact0
Width in number of modular spacings-
Number of switches-
Motor drive optionalNo
Motor drive integratedNo
Version as emergency stop installationNo
Rated operation power at AC-23, 400 V88kW
Device constructionBuilt-in device fixed built-in technique
Max. rated operation voltage Ue AC1000V
Rated short-time withstand current lcw8kA
Suitable for distribution board installationNo
Type of electrical connection of main circuitBolt connection
Suitable for intermediate mountingNo
Suitable for front mounting 4-holeNo
Suitable for floor mountingNo
Version as maintenance-/service switchYes
Suitable for front mounting centreNo
Colour control elementBlack
Type of control elementLong turning handle
Version as main switchYes
Version as safety switchNo
Voltage release optionalNo
InterlockableYes
Rated permanent current at AC-23, 400 V160A
Rated permanent current at AC-21, 400 V200A
Switching power at 400 V88kW
Version as reversing switchNo
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

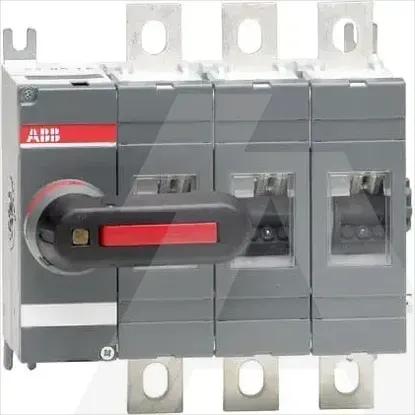

1SCA120513R1001 | OT160EV03K
