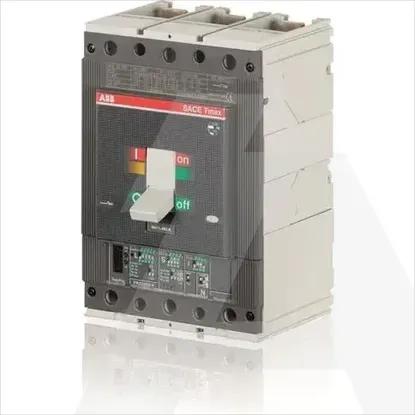

Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Rated permanent current Iu400A
Number of auxiliary contacts as normally closed contact0
With integrated under voltage releaseNo
Number of auxiliary contacts as normally open contact0
Rated voltage690 - 690V
Number of auxiliary contacts as change-over contact0
Overload release current setting160.0 - 400A
Number of poles3
Adjustment range short-term delayed short-circuit release240.0 - 4000A
With switched-off indicatorNo
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz36kA
Type of control elementToggle
Type of electrical connection of main circuitBolt connection
Degree of protection (IP)IP20
Motor drive integratedNo
Position of connection for main current circuitFront side
Adjustment range undelayed short-circuit release600.0 - 4800A
Integrated earth fault protectionNo
Suitable for DIN rail (top hat rail) mountingNo
Complete device with protection unitYes
Motor drive optionalYes
Device constructionBuilt-in device fixed built-in technique
DIN rail (top hat rail) mounting optionalNo
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SDA054321R1 | T5N 400 PR222DS/P-LSI IN=400 3P F F
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power circuit-breaker for trafo/generator/installation protection
- 1 KOM
- ABB
DetailsTechnical specificationsFrom same serie
Technical specifications
Rated permanent current Iu
400A
Number of auxiliary contacts as normally closed contact
0
With integrated under voltage release
Number of auxiliary contacts as normally open contact
0
Rated voltage
690 .. 690V
Number of auxiliary contacts as change-over contact
0
Overload release current setting
160.0 .. 400A
Number of poles
3
Adjustment range short-term delayed short-circuit release
240.0 .. 4000A
With switched-off indicator
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
36kA
Type of control element
Toggle
Type of electrical connection of main circuit
Bolt connection
Degree of protection (IP)
IP20
Motor drive integrated
Position of connection for main current circuit
Front side
Adjustment range undelayed short-circuit release
600.0 .. 4800A
Integrated earth fault protection
Suitable for DIN rail (top hat rail) mounting
Complete device with protection unit
Motor drive optional
Device construction
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional
From same serie
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
