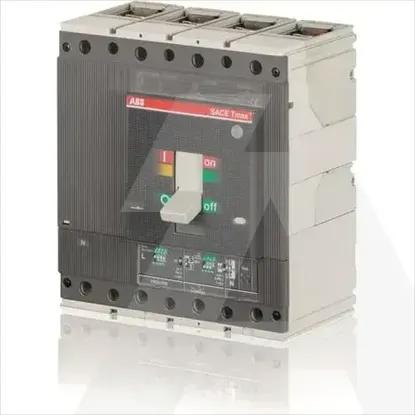

1SDA054325R1 | T5N 400 PR221DS-LS IN=400 4P F F
Code: 1526408
Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
With integrated under voltage releaseNo
Overload release current setting160.0 - 400A
Adjustment range undelayed short-circuit release400 - 4000A
Type of electrical connection of main circuitBolt connection
Adjustment range short-term delayed short-circuit release400 - 4000A
Rated voltage690 - 690V
Suitable for DIN rail (top hat rail) mountingNo
Integrated earth fault protectionNo
DIN rail (top hat rail) mounting optionalNo
Number of auxiliary contacts as normally open contact0
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz36kA
Position of connection for main current circuitFront side
Device constructionBuilt-in device fixed built-in technique
Number of auxiliary contacts as change-over contact0
With switched-off indicatorNo
Complete device with protection unitYes
Motor drive integratedNo
Number of poles4
Degree of protection (IP)IP20
Motor drive optionalYes
Type of control elementToggle
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu400A
