Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Adjustment range undelayed short-circuit release600.0 - 4800A
With switched-off indicatorNo
Integrated earth fault protectionNo
Type of electrical connection of main circuitBolt connection
Number of auxiliary contacts as normally closed contact0
Suitable for DIN rail (top hat rail) mountingNo
Motor drive optionalYes
Number of auxiliary contacts as change-over contact0
Adjustment range short-term delayed short-circuit release240.0 - 4000A
Number of auxiliary contacts as normally open contact0
Rated voltage690 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz70kA
Number of poles4
Degree of protection (IP)IP20
Overload release current setting160.0 - 400A
Rated permanent current Iu400A
Type of control elementToggle
Position of connection for main current circuitFront side
Motor drive integratedNo
With under voltage releaseNo
Device constructionBuilt-in device fixed built-in technique
DIN rail (top hat rail) mounting optionalNo
Complete device with protection unitYes
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

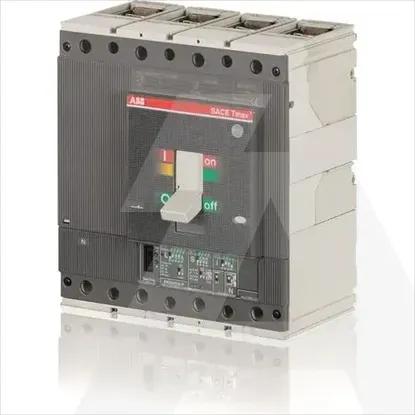

1SDA054361R1 | T5H 400 PR222DS/P-LSI IN=400 4P F F
