Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Overload release current setting280.0 - 400A
Number of auxiliary contacts as normally closed contact0
Rated voltage690 - 690V
Number of poles3
Degree of protection (IP)IP20
Number of auxiliary contacts as normally open contact0
With integrated under voltage releaseNo
Rated permanent current Iu400A
Number of auxiliary contacts as change-over contact0
Type of control elementToggle
Type of electrical connection of main circuitBolt connection
Motor drive integratedNo
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz36kA
Position of connection for main current circuitFront side
With switched-off indicatorNo
Adjustment range undelayed short-circuit release2000 - 4000A
Adjustment range short-term delayed short-circuit release- - -A
Suitable for DIN rail (top hat rail) mountingNo
DIN rail (top hat rail) mounting optionalNo
Motor drive optionalYes
Complete device with protection unitYes
Integrated earth fault protectionNo
Device constructionBuilt-in device fixed built-in technique
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

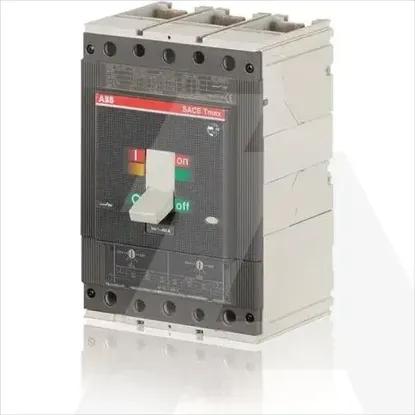

1SDA054437R1 | T5N 400 TMA 400-4000 3P F F
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power circuit-breaker for trafo/generator/installation protection
- 1 KOM
- ABB
DetailsTechnical specificationsFrom same serie
Technical specifications
Overload release current setting
280.0 .. 400A
Number of auxiliary contacts as normally closed contact
0
Rated voltage
690 .. 690V
Number of poles
3
Degree of protection (IP)
IP20
Number of auxiliary contacts as normally open contact
0
With integrated under voltage release
Rated permanent current Iu
400A
Number of auxiliary contacts as change-over contact
0
Type of control element
Toggle
Type of electrical connection of main circuit
Bolt connection
Motor drive integrated
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
36kA
Position of connection for main current circuit
Front side
With switched-off indicator
Adjustment range undelayed short-circuit release
2000 .. 4000A
Adjustment range short-term delayed short-circuit release
- .. -A
Suitable for DIN rail (top hat rail) mounting
DIN rail (top hat rail) mounting optional
Motor drive optional
Complete device with protection unit
Integrated earth fault protection
Device construction
Built-in device fixed built-in technique
From same serie
