Details
- •Low-voltage control systems
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Adjustment range short-term delayed short-circuit release- - -A
Adjustment range undelayed short-circuit release2500 - 5000A
Overload release current setting350 - 500A
With switched-off indicatorNo
Number of auxiliary contacts as normally closed contact0
Type of electrical connection of main circuitBolt connection
Number of auxiliary contacts as normally open contact0
Rated voltage690 - 690V
Number of auxiliary contacts as change-over contact0
Suitable for DIN rail (top hat rail) mountingNo
With integrated under voltage releaseNo
DIN rail (top hat rail) mounting optionalNo
Degree of protection (IP)IP20
Power loss28.8W
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz70kA
Number of poles4
Rated permanent current Iu630A
Device constructionBuilt-in device fixed built-in technique
Position of connection for main current circuitFront side
Complete device with protection unitYes
Motor drive integratedNo
Integrated earth fault protectionNo
Motor drive optionalYes
Type of control elementRocker lever
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

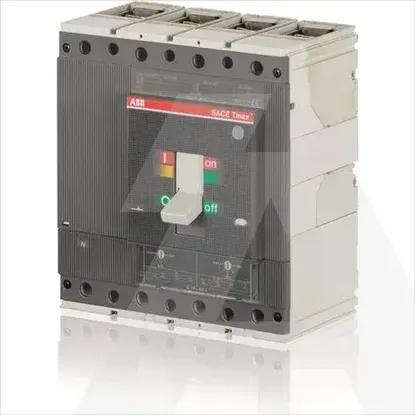

1SDA054467R1 | T5H 630 TMA 500-5000 4P F F
