Details
- •Low-voltage control systems
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Degree of protection (IP)IP20
Overload release current setting40.0 - 100A
Number of auxiliary contacts as change-over contact0
With integrated under voltage releaseNo
Motor drive integratedNo
With switched-off indicatorNo
Type of electrical connection of main circuitBolt connection
Number of auxiliary contacts as normally open contact0
Adjustment range undelayed short-circuit release150.0 - 1200A
Suitable for DIN rail (top hat rail) mountingNo
Adjustment range short-term delayed short-circuit release60.0 - 1000A
DIN rail (top hat rail) mounting optionalNo
Motor drive optionalYes
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionNo
Type of control elementRocker lever
Position of connection for main current circuitFront side
Complete device with protection unitYes
Rated permanent current Iu100A
Number of poles3
Rated voltage1150 - 1150V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz120kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

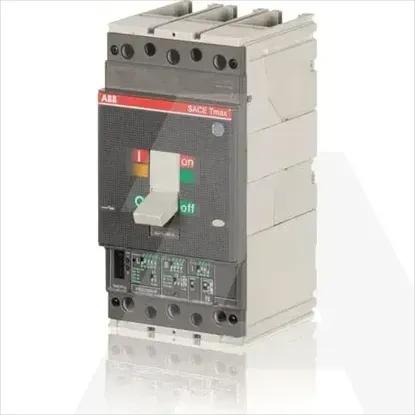

1SDA054507R1 | T4L250 PR222DS/P-LSI IN=100 3P F FC CU
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage control systems
- Power circuit-breaker for trafo/generator/installation protection
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Number of auxiliary contacts as normally closed contact
0
Degree of protection (IP)
IP20
Overload release current setting
40.0 .. 100A
Number of auxiliary contacts as change-over contact
0
With integrated under voltage release
Motor drive integrated
With switched-off indicator
Type of electrical connection of main circuit
Bolt connection
Number of auxiliary contacts as normally open contact
0
Adjustment range undelayed short-circuit release
150.0 .. 1200A
Suitable for DIN rail (top hat rail) mounting
Adjustment range short-term delayed short-circuit release
60.0 .. 1000A
DIN rail (top hat rail) mounting optional
Motor drive optional
Device construction
Built-in device fixed built-in technique
Integrated earth fault protection
Type of control element
Rocker lever
Position of connection for main current circuit
Front side
Complete device with protection unit
Rated permanent current Iu
100A
Number of poles
3
Rated voltage
1150 .. 1150V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
120kA
