Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Type of control elementToggle
Rated operation power at AC-3, 400 V-kW
Conditioned rated short-circuit current Iq-kA
Switching power at 400 V-kW
Number of switches-
Rated permanent current at AC-23, 400 V-A
Rated operation power at AC-23, 400 V-kW
Version as maintenance-/service switchNo
Version as main switchYes
Version as safety switchNo
Max. rated operation voltage Ue AC690V
Number of auxiliary contacts as normally closed contact0
Rated permanent current at AC-21, 400 V630A
Rated operating voltage0 - 690V
Rated short-time withstand current lcw6kA
Motor drive integratedNo
Version as emergency stop installationNo
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Version as reversing switchNo
Number of poles3
Motor drive optionalYes
Device constructionBuilt-in device fixed built-in technique
Voltage release optionalYes
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Suitable for floor mountingNo
Rated permanent current Iu630A
Suitable for intermediate mountingNo
Type of electrical connection of main circuitBolt connection
InterlockableYes
Degree of protection (NEMA)1
Suitable for distribution board installationYes
Degree of protection (IP), front sideIP20
Colour control elementGrey
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

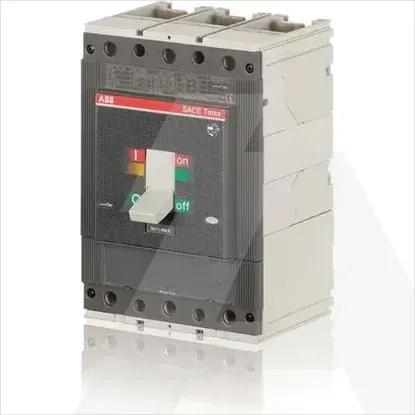

1SDA054601R1 | T5D 630 3P F F
