Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
With integrated under voltage releaseNo
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu630A
Overload release current setting441.0 - 630A
Rated voltage690 - 690V
Number of poles4
Number of auxiliary contacts as change-over contact0
Degree of protection (IP)IP20
Position of connection for main current circuitFront side
Adjustment range short-term delayed short-circuit release- - -A
Type of control elementToggle
Motor drive optionalYes
With switched-off indicatorNo
Type of electrical connection of main circuitBolt connection
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz36kA
Motor drive integratedNo
Integrated earth fault protectionNo
Suitable for DIN rail (top hat rail) mountingNo
Adjustment range undelayed short-circuit release3150 - 6300A
DIN rail (top hat rail) mounting optionalNo
Complete device with protection unitYes
Device constructionBuilt-in device fixed built-in technique
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

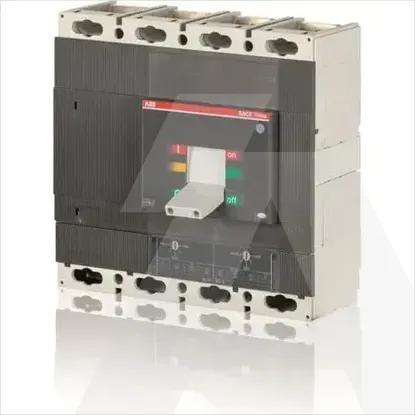

1SDA060210R1 | T6N 630 TMA 630-6300 4P F F INN=100%IN
