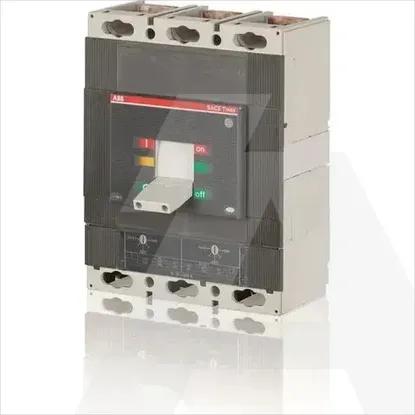

1SDA060216R1 | T6S 800 TMA 800-8000 3P F F
Code: 1527457
ManufacturerABB
Catalog number1SDA060216R1
TypeT6S 800 TMA 800-8000 3p F F
Category-
EAN code8015644626761
Details
- •Low-voltage control systems
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Adjustment range short-term delayed short-circuit release- - -A
Degree of protection (IP)IP20
Position of connection for main current circuitFront side
Type of control elementToggle
Device constructionBuilt-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mountingNo
DIN rail (top hat rail) mounting optionalNo
Overload release current setting560 - 800A
Type of electrical connection of main circuitBolt connection
Number of auxiliary contacts as normally open contact0
Motor drive optionalYes
With switched-off indicatorNo
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact0
With integrated under voltage releaseNo
Adjustment range undelayed short-circuit release4000 - 8000A
Power loss31W
Integrated earth fault protectionNo
Motor drive integratedNo
Complete device with protection unitYes
Rated permanent current Iu800A
Number of poles3
Rated voltage690 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
