Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Number of poles4
Rated permanent current Iu630A
Number of auxiliary contacts as normally closed contact0
With integrated under voltage releaseNo
Position of connection for main current circuitFront side
Number of auxiliary contacts as change-over contact0
With switched-off indicatorNo
Type of electrical connection of main circuitBolt connection
Type of control elementToggle
Motor drive integratedNo
Integrated earth fault protectionNo
Suitable for DIN rail (top hat rail) mountingNo
DIN rail (top hat rail) mounting optionalNo
Overload release current setting252.0 - 630A
Adjustment range undelayed short-circuit release945.0 - 7560A
Rated voltage690 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz70kA
Complete device with protection unitYes
Adjustment range short-term delayed short-circuit release378.0 - 6300A
Device constructionBuilt-in device fixed built-in technique
Degree of protection (IP)IP20
Motor drive optionalYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

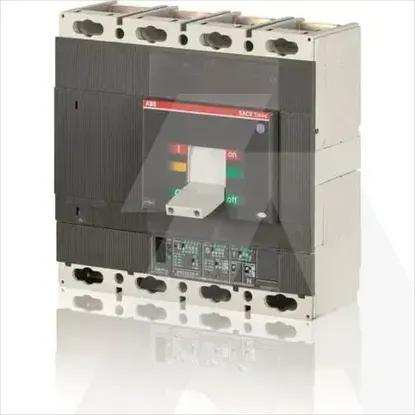

1SDA060253R1 | T6H 630 PR222DS/P-LSI IN=630 4P F F
