Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu800A
Overload release current setting320.0 - 800A
DIN rail (top hat rail) mounting optionalNo
Number of auxiliary contacts as change-over contact0
Degree of protection (IP)IP20
Type of control elementToggle
Adjustment range undelayed short-circuit release1000 - 10000A
Complete device with protection unitYes
Motor drive integratedNo
Rated voltage690 - 690V
Motor drive optionalYes
Device constructionBuilt-in device fixed built-in technique
Position of connection for main current circuitFront side
Number of poles4
Adjustment range short-term delayed short-circuit release1000 - 10000A
Suitable for DIN rail (top hat rail) mountingNo
With switched-off indicatorNo
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
Integrated earth fault protectionNo
With integrated under voltage releaseNo
Type of electrical connection of main circuitBolt connection
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

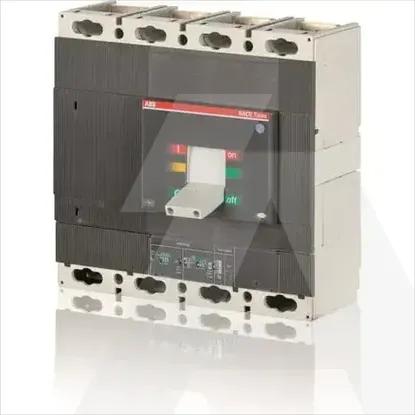

1SDA060284R1 | T6S 800 PR221DS-I IN=800 4P F F
