Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Number of poles3
Number of auxiliary contacts as change-over contact0
Overload release current setting320.0 - 800A
Degree of protection (IP)IP20
With integrated under voltage releaseNo
Rated permanent current Iu800A
Rated voltage690 - 690V
Type of control elementToggle
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz70kA
Position of connection for main current circuitFront side
With switched-off indicatorNo
Adjustment range short-term delayed short-circuit release480.0 - 7600A
Type of electrical connection of main circuitBolt connection
Suitable for DIN rail (top hat rail) mountingNo
Adjustment range undelayed short-circuit release1200.0 - 9600A
Motor drive integratedNo
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionNo
Complete device with protection unitYes
Motor drive optionalYes
DIN rail (top hat rail) mounting optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

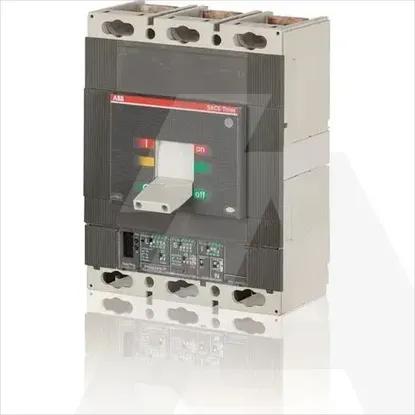

1SDA060291R1 | T6H 800 PR222DS/P-LSI IN=800 3P F F
