Details
- •Low-voltage control systems
- •Switch disconnector (AC)
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Version as safety switchNo
Motor drive integratedNo
Rated short-time withstand current lcw15kA
Suitable for front mounting 4-holeNo
Version as emergency stop installationNo
Suitable for floor mountingNo
Degree of protection (IP), front sideIP20
Version as main switchYes
Suitable for front mounting centreNo
Version as maintenance-/service switchNo
InterlockableYes
Rated operating voltage0 - 690V
Number of auxiliary contacts as change-over contact0
Number of switches-
Conditioned rated short-circuit current Iq-kA
Rated operation power at AC-23, 400 V-kW
Type of electrical connection of main circuitBolt connection
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Suitable for distribution board installationYes
Motor drive optionalYes
Version as reversing switchNo
Voltage release optionalYes
Rated permanent current at AC-21, 400 V630A
Rated permanent current at AC-23, 400 V-A
Degree of protection (NEMA)1
Switching power at 400 V-kW
Suitable for intermediate mountingNo
Material housingPlastic
Device constructionBuilt-in device fixed built-in technique
Colour housingGrey
Colour control elementWhite
Type of control elementRocker lever
Rated permanent current Iu630A
Number of poles4
Max. rated operation voltage Ue AC690V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

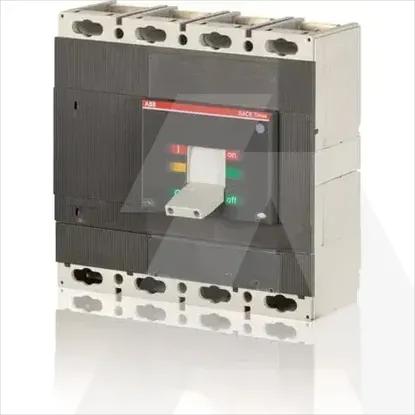

1SDA060344R1 | T6D 630 4P F F
