Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Degree of protection (IP)IP20
Number of poles3
Overload release current setting400.0 - 1000A
Rated voltage690 - 690V
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
With integrated under voltage releaseNo
Type of electrical connection of main circuitBolt connection
Position of connection for main current circuitFront side
Type of control elementToggle
Motor drive integratedNo
Rated permanent current Iu1000A
Suitable for DIN rail (top hat rail) mountingNo
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
Adjustment range short-term delayed short-circuit release1000 - 10000A
Adjustment range undelayed short-circuit release1000 - 10000A
Motor drive optionalYes
With switched-off indicatorNo
DIN rail (top hat rail) mounting optionalNo
Complete device with protection unitYes
Integrated earth fault protectionNo
Device constructionBuilt-in device fixed built-in technique
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

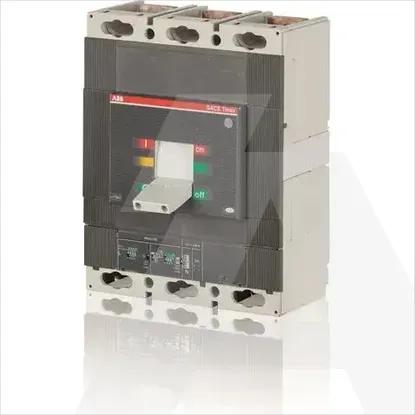

1SDA060547R1 | T6S 1000 PR221DS-LS/I IN=1000 3P F F
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power circuit-breaker for trafo/generator/installation protection
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Number of auxiliary contacts as normally open contact
0
Degree of protection (IP)
IP20
Number of poles
3
Overload release current setting
400.0 .. 1000A
Rated voltage
690 .. 690V
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as change-over contact
0
With integrated under voltage release
Type of electrical connection of main circuit
Bolt connection
Position of connection for main current circuit
Front side
Type of control element
Toggle
Motor drive integrated
Rated permanent current Iu
1000A
Suitable for DIN rail (top hat rail) mounting
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
50kA
Adjustment range short-term delayed short-circuit release
1000 .. 10000A
Adjustment range undelayed short-circuit release
1000 .. 10000A
Motor drive optional
With switched-off indicator
DIN rail (top hat rail) mounting optional
Complete device with protection unit
Integrated earth fault protection
Device construction
Built-in device fixed built-in technique
