Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Rated permanent current Iu1000A
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Degree of protection (IP)IP20
Rated voltage690 - 690V
Number of poles4
Number of auxiliary contacts as change-over contact0
Overload release current setting400.0 - 1000A
Type of control elementToggle
Device constructionBuilt-in device fixed built-in technique
Motor drive integratedNo
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
Adjustment range undelayed short-circuit release1000 - 10000A
With under voltage releaseNo
Position of connection for main current circuitFront side
Adjustment range short-term delayed short-circuit release1000 - 10000A
With switched-off indicatorNo
DIN rail (top hat rail) mounting optionalNo
Motor drive optionalYes
Integrated earth fault protectionNo
Suitable for DIN rail (top hat rail) mountingNo
Type of electrical connection of main circuitBolt connection
Complete device with protection unitYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

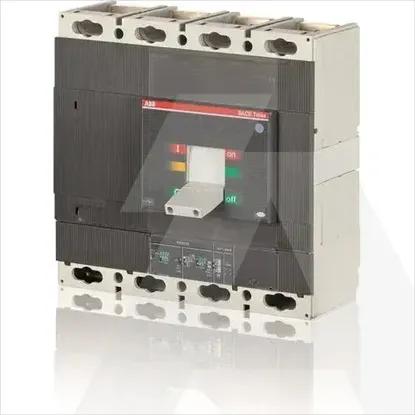

1SDA060556R1 | T6S 1000 PR221DS-LS/I IN=1000 4P F F
