Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu800A
Number of auxiliary contacts as normally open contact0
Number of poles3
With integrated under voltage releaseNo
Overload release current setting320.0 - 800A
Number of auxiliary contacts as change-over contact0
Rated voltage690 - 690V
Type of control elementToggle
Degree of protection (IP)IP20
Position of connection for main current circuitFront side
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
Type of electrical connection of main circuitBolt connection
Motor drive integratedNo
Suitable for DIN rail (top hat rail) mountingNo
Device constructionBuilt-in device fixed built-in technique
Adjustment range undelayed short-circuit release1200.0 - 12000A
Integrated earth fault protectionYes
Adjustment range short-term delayed short-circuit release480.0 - 8000A
With switched-off indicatorNo
Motor drive optionalNo
DIN rail (top hat rail) mounting optionalNo
Complete device with protection unitYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

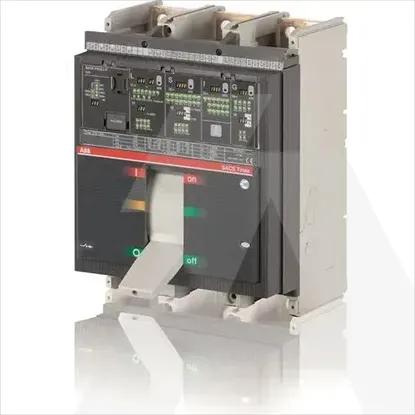

1SDA061965R1 | T7S 800 PR331/P LSIG IN=800A 3P F F
