Details
- •Low-voltage control systems
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Degree of protection (IP)IP20
With integrated under voltage releaseNo
Suitable for DIN rail (top hat rail) mountingNo
Number of auxiliary contacts as normally closed contact0
Rated voltage690 - 690V
With switched-off indicatorNo
Number of auxiliary contacts as normally open contact0
Adjustment range undelayed short-circuit release1200.0 - 12000A
Motor drive integratedNo
Adjustment range short-term delayed short-circuit release480.0 - 8000A
Number of auxiliary contacts as change-over contact0
Type of electrical connection of main circuitBolt connection
Motor drive optionalNo
DIN rail (top hat rail) mounting optionalNo
Overload release current setting320.0 - 800A
Rated permanent current Iu800A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
Number of poles3
Device constructionBuilt-in device fixed built-in technique
Position of connection for main current circuitFront side
Complete device with protection unitYes
Type of control elementRocker lever
Integrated earth fault protectionNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

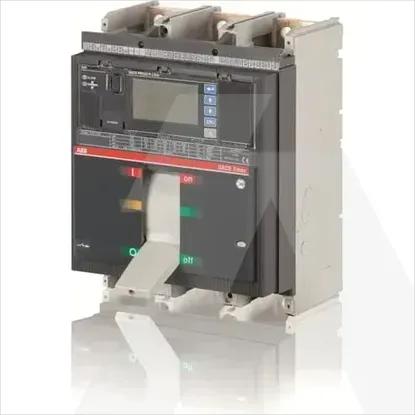

1SDA061967R1 | T7S 800 PR332/P LSI In=800A 3p F F
