Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Number of poles4
Overload release current setting320.0 - 800A
Rated permanent current Iu800A
Number of auxiliary contacts as normally closed contact0
Integrated earth fault protectionNo
Degree of protection (IP)IP20
With switched-off indicatorNo
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
Complete device with protection unitYes
With under voltage releaseNo
DIN rail (top hat rail) mounting optionalNo
Type of electrical connection of main circuitBolt connection
Position of connection for main current circuitFront side
Type of control elementToggle
Motor drive integratedNo
Adjustment range undelayed short-circuit release800 - 8000A
Device constructionBuilt-in device fixed built-in technique
Rated voltage690 - 690V
Number of auxiliary contacts as change-over contact0
Motor drive optionalNo
Suitable for DIN rail (top hat rail) mountingNo
Adjustment range short-term delayed short-circuit release800 - 8000A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

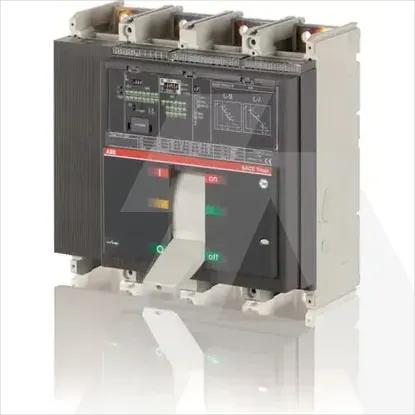

1SDA061972R1 | T7S 800 PR231/P I IN=800A 4P F F
