Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu800A
With integrated under voltage releaseNo
Number of auxiliary contacts as change-over contact0
With switched-off indicatorNo
Adjustment range short-term delayed short-circuit release800 - 8000A
Rated voltage690 - 690V
Type of control elementPush button
Motor drive integratedNo
Overload release current setting320.0 - 800A
Number of auxiliary contacts as normally closed contact0
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
Type of electrical connection of main circuitBolt connection
Number of poles3
Adjustment range undelayed short-circuit release800 - 8000A
Degree of protection (IP)IP20
Position of connection for main current circuitFront side
Integrated earth fault protectionNo
DIN rail (top hat rail) mounting optionalNo
Suitable for DIN rail (top hat rail) mountingNo
Device constructionBuilt-in device fixed built-in technique
Complete device with protection unitYes
Motor drive optionalYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

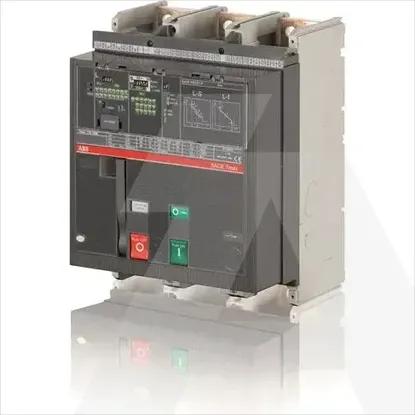

1SDA061981R1 | T7S 800 PR231/P LS/I IN=800A 3P F F M
