Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
With integrated under voltage releaseNo
Rated permanent current Iu800A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
Adjustment range undelayed short-circuit release1200.0 - 9600A
Rated voltage690 - 690V
DIN rail (top hat rail) mounting optionalNo
Adjustment range short-term delayed short-circuit release480.0 - 8000A
Integrated earth fault protectionNo
Device constructionBuilt-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mountingNo
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
With switched-off indicatorNo
Complete device with protection unitYes
Position of connection for main current circuitFront side
Number of auxiliary contacts as change-over contact0
Number of poles3
Type of electrical connection of main circuitBolt connection
Degree of protection (IP)IP20
Motor drive optionalYes
Overload release current setting320.0 - 800A
Type of control elementPush button
Motor drive integratedNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

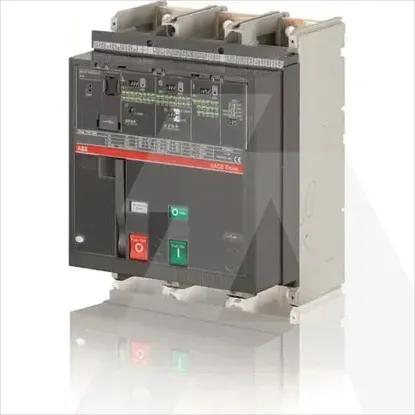

1SDA061982R1 | T7S 800 PR232/P LSI IN=800A 3P F F M
