Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Degree of protection (IP)IP20
Overload release current setting320.0 - 800A
Type of electrical connection of main circuitBolt connection
Number of auxiliary contacts as normally closed contact0
Rated voltage690 - 690V
Position of connection for main current circuitFront side
Number of auxiliary contacts as change-over contact0
With integrated under voltage releaseNo
Rated permanent current Iu800A
Number of poles3
Number of auxiliary contacts as normally open contact0
Motor drive integratedNo
Type of control elementPush button
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
With switched-off indicatorNo
Adjustment range undelayed short-circuit release1200.0 - 12000A
Adjustment range short-term delayed short-circuit release480.0 - 8000A
Suitable for DIN rail (top hat rail) mountingNo
Motor drive optionalYes
DIN rail (top hat rail) mounting optionalNo
Complete device with protection unitYes
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

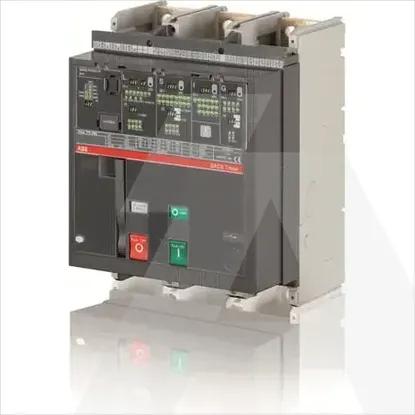

1SDA061983R1 | T7S 800 PR331/P LSIG IN=800A 3P F F M
