Details
- •Low-voltage control systems
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact0
Rated voltage690 - 690V
With integrated under voltage releaseNo
Number of auxiliary contacts as normally open contact0
Overload release current setting320.0 - 800A
Suitable for DIN rail (top hat rail) mountingNo
Adjustment range undelayed short-circuit release1200.0 - 12000A
Adjustment range short-term delayed short-circuit release480.0 - 8000A
Motor drive integratedNo
Degree of protection (IP)IP20
Type of electrical connection of main circuitBolt connection
With switched-off indicatorNo
Motor drive optionalYes
DIN rail (top hat rail) mounting optionalNo
Number of poles3
Complete device with protection unitYes
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionYes
Rated permanent current Iu800A
Position of connection for main current circuitFront side
Type of control elementPush button
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

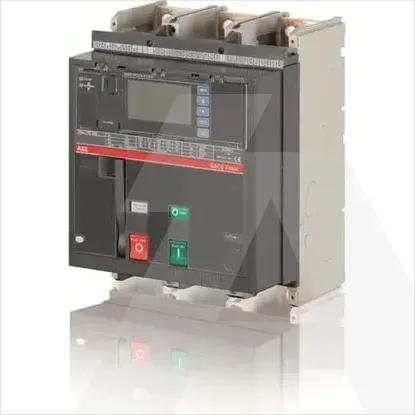

1SDA061987R1 | T7S 800 PR332/P LSIRc In=800A 3p F F M
