Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu800A
With integrated under voltage releaseNo
Degree of protection (IP)IP20
With switched-off indicatorNo
Overload release current setting320.0 - 800A
Number of auxiliary contacts as change-over contact0
Complete device with protection unitYes
Device constructionBuilt-in device fixed built-in technique
Adjustment range short-term delayed short-circuit release480.0 - 8000A
DIN rail (top hat rail) mounting optionalNo
Adjustment range undelayed short-circuit release1200.0 - 12000A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
Type of electrical connection of main circuitBolt connection
Motor drive integratedNo
Suitable for DIN rail (top hat rail) mountingNo
Integrated earth fault protectionYes
Position of connection for main current circuitFront side
Number of poles4
Motor drive optionalYes
Rated voltage690 - 690V
Type of control elementPush button
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

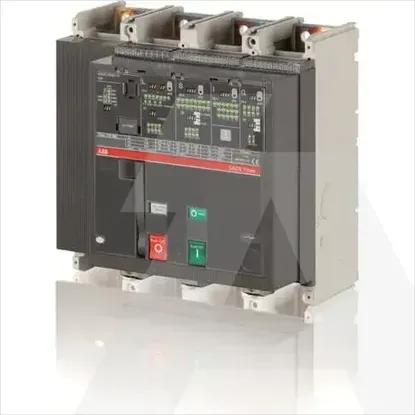

1SDA061991R1 | T7S 800 PR331/P LSIG IN=800A 4P F F M
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power circuit-breaker for trafo/generator/installation protection
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Rated permanent current Iu
800A
With integrated under voltage release
Degree of protection (IP)
IP20
With switched-off indicator
Overload release current setting
320.0 .. 800A
Number of auxiliary contacts as change-over contact
0
Complete device with protection unit
Device construction
Built-in device fixed built-in technique
Adjustment range short-term delayed short-circuit release
480.0 .. 8000A
DIN rail (top hat rail) mounting optional
Adjustment range undelayed short-circuit release
1200.0 .. 12000A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
50kA
Type of electrical connection of main circuit
Bolt connection
Motor drive integrated
Suitable for DIN rail (top hat rail) mounting
Integrated earth fault protection
Position of connection for main current circuit
Front side
Number of poles
4
Motor drive optional
Rated voltage
690 .. 690V
Type of control element
Push button
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
