Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Rated permanent current Iu800A
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Degree of protection (IP)IP20
Rated voltage690 - 690V
Number of poles4
Number of auxiliary contacts as change-over contact0
Position of connection for main current circuitFront side
Overload release current setting320.0 - 800A
Motor drive integratedNo
Adjustment range short-term delayed short-circuit release480.0 - 8000A
With under voltage releaseNo
Motor drive optionalYes
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
Adjustment range undelayed short-circuit release1200.0 - 12000A
Device constructionBuilt-in device fixed built-in technique
DIN rail (top hat rail) mounting optionalNo
With switched-off indicatorNo
Suitable for DIN rail (top hat rail) mountingNo
Integrated earth fault protectionYes
Type of electrical connection of main circuitBolt connection
Type of control elementPush button
Complete device with protection unitYes
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

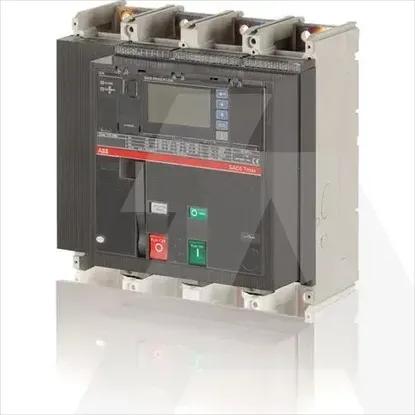

1SDA061994R1 | T7S 800 PR332/P LSIG In=800A 4p F F M
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power circuit-breaker for trafo/generator/installation protection
- 1 KOM
- ABB
DetailsTechnical specificationsFrom same serie
Technical specifications
Rated permanent current Iu
800A
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Degree of protection (IP)
IP20
Rated voltage
690 .. 690V
Number of poles
4
Number of auxiliary contacts as change-over contact
0
Position of connection for main current circuit
Front side
Overload release current setting
320.0 .. 800A
Motor drive integrated
Adjustment range short-term delayed short-circuit release
480.0 .. 8000A
With under voltage release
Motor drive optional
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
50kA
Adjustment range undelayed short-circuit release
1200.0 .. 12000A
Device construction
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional
With switched-off indicator
Suitable for DIN rail (top hat rail) mounting
Integrated earth fault protection
Type of electrical connection of main circuit
Bolt connection
Type of control element
Push button
Complete device with protection unit
From same serie
