Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Conditioned rated short-circuit current Iq-kA
Switching power at 400 V-kW
Number of switches-
Rated permanent current at AC-23, 400 V-A
Rated operation power at AC-23, 400 V-kW
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact0
Version as emergency stop installationNo
Version as reversing switchNo
Version as maintenance-/service switchNo
Rated operating voltage0 - 690V
Max. rated operation voltage Ue AC690V
Rated permanent current Iu1600A
Version as safety switchNo
Version as main switchYes
Rated permanent current at AC-21, 400 V1600A
Motor drive integratedNo
Motor drive optionalNo
Rated short-time withstand current lcw20kA
Number of poles3
Suitable for floor mountingNo
Voltage release optionalYes
Suitable for front mounting 4-holeNo
Device constructionBuilt-in device fixed built-in technique
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Colour control elementGrey
InterlockableYes
Type of control elementToggle
Degree of protection (NEMA)1
Type of electrical connection of main circuitBolt connection
Suitable for intermediate mountingNo
Degree of protection (IP), front sideIP20
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

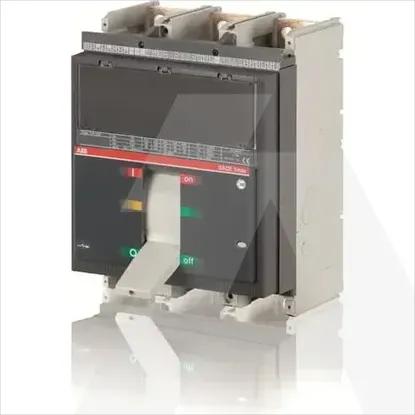

1SDA062040R1 | T7D 1600 3P F F
