Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
With integrated under voltage releaseNo
Rated permanent current Iu800A
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Overload release current setting320.0 - 800A
Number of auxiliary contacts as change-over contact0
Number of poles3
Degree of protection (IP)IP20
Rated voltage690 - 690V
Adjustment range undelayed short-circuit release1200.0 - 9600A
Position of connection for main current circuitFront side
DIN rail (top hat rail) mounting optionalNo
Complete device with protection unitYes
Suitable for DIN rail (top hat rail) mountingNo
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz70kA
Integrated earth fault protectionNo
Motor drive integratedNo
Device constructionBuilt-in device fixed built-in technique
Motor drive optionalNo
Type of electrical connection of main circuitBolt connection
Adjustment range short-term delayed short-circuit release480.0 - 8000A
Type of control elementToggle
With switched-off indicatorNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

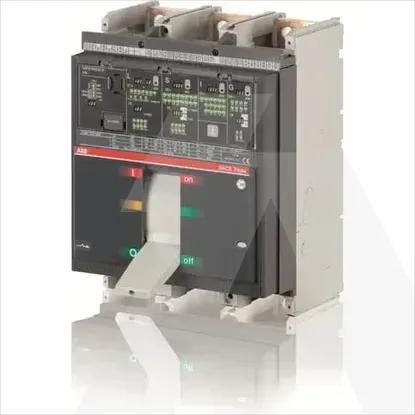

1SDA062643R1 | T7H 800 PR232/P LSI IN=800A 3P F F
