Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
With switched-off indicatorNo
Rated permanent current Iu1250A
Rated voltage690 - 690V
Overload release current setting500.0 - 1250A
Position of connection for main current circuitFront side
Type of control elementPush button
Number of poles4
Motor drive integratedNo
Degree of protection (IP)IP20
Number of auxiliary contacts as normally closed contact0
Type of electrical connection of main circuitBolt connection
Number of auxiliary contacts as change-over contact0
With under voltage releaseNo
Motor drive optionalYes
Integrated earth fault protectionNo
Adjustment range short-term delayed short-circuit release1250 - 12500A
Suitable for DIN rail (top hat rail) mountingNo
Adjustment range undelayed short-circuit release1250 - 12500A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
Device constructionBuilt-in device fixed built-in technique
DIN rail (top hat rail) mounting optionalNo
Complete device with protection unitYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

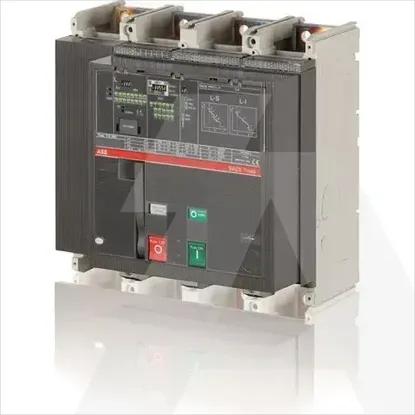

1SDA062890R1 | T7S 1250 PR231/P LS/I IN=1250A 4P F F M
