Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Type of electrical connection of main circuitBolt connection
Number of auxiliary contacts as change-over contact0
Degree of protection (IP)IP20
Number of poles3
Motor drive integratedNo
Overload release current setting640.0 - 1600A
Position of connection for main current circuitFront side
Rated voltage690 - 690V
Rated permanent current Iu1600A
With integrated under voltage releaseNo
Adjustment range short-term delayed short-circuit release1600 - 16000A
Type of control elementToggle
Motor drive optionalNo
Integrated earth fault protectionNo
DIN rail (top hat rail) mounting optionalNo
Suitable for DIN rail (top hat rail) mountingNo
Complete device with protection unitYes
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
With switched-off indicatorNo
Device constructionBuilt-in device fixed built-in technique
Adjustment range undelayed short-circuit release1600 - 16000A
Recommended products
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

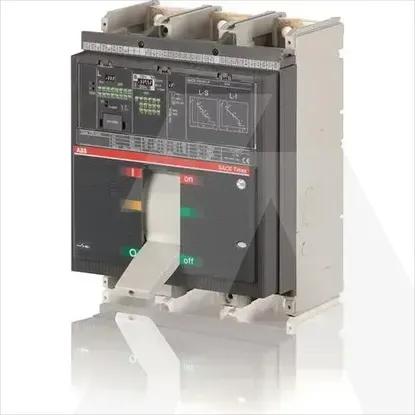

1SDA062994R1 | T7S 1600 PR231/P LS/I IN=1600A 3P F F
