Details
- •Low-voltage control systems
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Rated voltage690 - 690V
Degree of protection (IP)IP20
Overload release current setting640.0 - 1600A
Adjustment range undelayed short-circuit release2400.0 - 19200A
Number of auxiliary contacts as change-over contact0
With integrated under voltage releaseNo
With switched-off indicatorNo
Adjustment range short-term delayed short-circuit release960.0 - 16000A
Number of auxiliary contacts as normally closed contact0
Type of electrical connection of main circuitBolt connection
DIN rail (top hat rail) mounting optionalNo
Rated permanent current Iu1600A
Number of poles4
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
Device constructionBuilt-in device fixed built-in technique
Position of connection for main current circuitFront side
Integrated earth fault protectionNo
Type of control elementRocker lever
Motor drive integratedNo
Complete device with protection unitYes
Suitable for DIN rail (top hat rail) mountingNo
Motor drive optionalYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

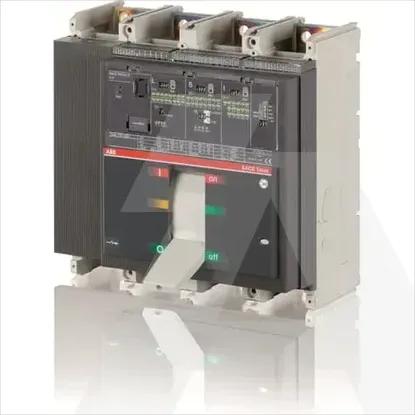

1SDA063003R1 | T7S 1600 PR232/P LSI IN=1600A 4P F F
