Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu160A
Number of auxiliary contacts as normally closed contact0
Number of poles4
Rated voltage220 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz36kA
Number of auxiliary contacts as change-over contact0
Overload release current setting70.0 - 100A
Motor drive integratedNo
Suitable for DIN rail (top hat rail) mountingNo
Type of electrical connection of main circuitBolt connection
Degree of protection (IP)IP20
Adjustment range undelayed short-circuit release500 - 1000A
Adjustment range short-term delayed short-circuit release- - -A
Integrated earth fault protectionNo
Position of connection for main current circuitFront side
Type of control elementToggle
With switched-off indicatorNo
Motor drive optionalYes
With under voltage releaseNo
Complete device with protection unitYes
DIN rail (top hat rail) mounting optionalYes
Device constructionBuilt-in device fixed built-in technique
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

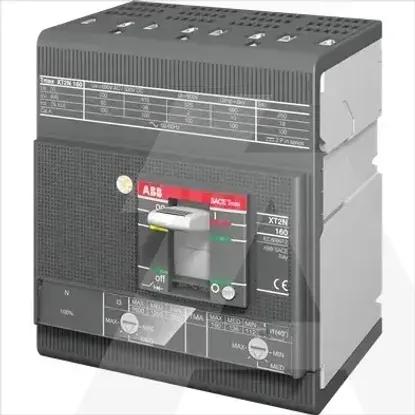

1SDA067039R1 | XT2N 160 TMA 100-1000 4P F F
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power circuit-breaker for trafo/generator/installation protection
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Number of auxiliary contacts as normally open contact
0
Rated permanent current Iu
160A
Number of auxiliary contacts as normally closed contact
0
Number of poles
4
Rated voltage
220 .. 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
36kA
Number of auxiliary contacts as change-over contact
0
Overload release current setting
70.0 .. 100A
Motor drive integrated
Suitable for DIN rail (top hat rail) mounting
Type of electrical connection of main circuit
Bolt connection
Degree of protection (IP)
IP20
Adjustment range undelayed short-circuit release
500 .. 1000A
Adjustment range short-term delayed short-circuit release
- .. -A
Integrated earth fault protection
Position of connection for main current circuit
Front side
Type of control element
Toggle
With switched-off indicator
Motor drive optional
With under voltage release
Complete device with protection unit
DIN rail (top hat rail) mounting optional
Device construction
Built-in device fixed built-in technique
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
