Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of poles3
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
Type of control elementToggle
Type of electrical connection of main circuitBolt connection
Suitable for DIN rail (top hat rail) mountingNo
Position of connection for main current circuitFront side
Integrated earth fault protectionNo
Number of auxiliary contacts as normally open contact0
Adjustment range short-term delayed short-circuit release- - -A
With switched-off indicatorNo
Rated permanent current Iu160A
Rated voltage220 - 690V
Motor drive optionalYes
Adjustment range undelayed short-circuit release800 - 1600A
Number of auxiliary contacts as normally closed contact0
Degree of protection (IP)IP20
Motor drive integratedNo
Overload release current setting112.0 - 160A
Device constructionBuilt-in device fixed built-in technique
Number of auxiliary contacts as change-over contact0
With under voltage releaseNo
Complete device with protection unitYes
DIN rail (top hat rail) mounting optionalYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

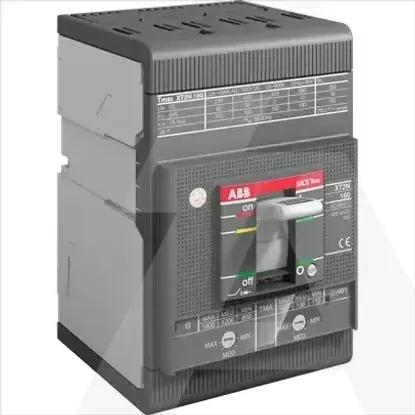

1SDA067560R1 | XT2S 160 TMA 160-1600 3P F F
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power circuit-breaker for trafo/generator/installation protection
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Number of poles
3
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
50kA
Type of control element
Toggle
Type of electrical connection of main circuit
Bolt connection
Suitable for DIN rail (top hat rail) mounting
Position of connection for main current circuit
Front side
Integrated earth fault protection
Number of auxiliary contacts as normally open contact
0
Adjustment range short-term delayed short-circuit release
- .. -A
With switched-off indicator
Rated permanent current Iu
160A
Rated voltage
220 .. 690V
Motor drive optional
Adjustment range undelayed short-circuit release
800 .. 1600A
Number of auxiliary contacts as normally closed contact
0
Degree of protection (IP)
IP20
Motor drive integrated
Overload release current setting
112.0 .. 160A
Device construction
Built-in device fixed built-in technique
Number of auxiliary contacts as change-over contact
0
With under voltage release
Complete device with protection unit
DIN rail (top hat rail) mounting optional
