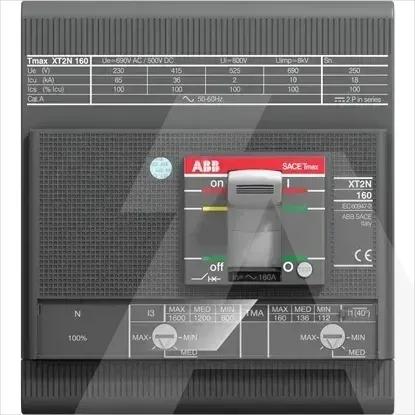

1SDA067583R1 | XT2S 160 TMA 160-1600 4P F F INN=100%
Code: 1530067
ManufacturerABB
Catalog number1SDA067583R1
TypeXT2S 160 TMA 160-1600 4p F F InN=100%
Category-
EAN code8015644014797
Details
- •Low-voltage control systems
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Overload release current setting112.0 - 160A
Position of connection for main current circuitFront side
Number of auxiliary contacts as change-over contact0
Degree of protection (IP)IP20
Type of control elementToggle
Motor drive integratedNo
Suitable for DIN rail (top hat rail) mountingNo
Type of electrical connection of main circuitBolt connection
Motor drive optionalYes
Integrated earth fault protectionNo
With switched-off indicatorNo
Adjustment range undelayed short-circuit release800 - 1600A
Adjustment range short-term delayed short-circuit release- - -A
With under voltage releaseNo
DIN rail (top hat rail) mounting optionalYes
Device constructionBuilt-in device fixed built-in technique
Complete device with protection unitYes
Rated permanent current Iu160A
Number of poles4
Rated voltage220 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SDA067583R1 | XT2S 160 TMA 160-1600 4P F F INN=100%
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage control systems
- Power circuit-breaker for trafo/generator/installation protection
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Overload release current setting
112.0 .. 160A
Position of connection for main current circuit
Front side
Number of auxiliary contacts as change-over contact
0
Degree of protection (IP)
IP20
Type of control element
Toggle
Motor drive integrated
Suitable for DIN rail (top hat rail) mounting
Type of electrical connection of main circuit
Bolt connection
Motor drive optional
Integrated earth fault protection
With switched-off indicator
Adjustment range undelayed short-circuit release
800 .. 1600A
Adjustment range short-term delayed short-circuit release
- .. -A
With under voltage release
DIN rail (top hat rail) mounting optional
Device construction
Built-in device fixed built-in technique
Complete device with protection unit
Rated permanent current Iu
160A
Number of poles
4
Rated voltage
220 .. 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
50kA
