Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Type of electrical connection of main circuitBolt connection
Adjustment range undelayed short-circuit release2500 - 2500A
Overload release current setting175.0 - 250A
Suitable for DIN rail (top hat rail) mountingNo
Number of auxiliary contacts as change-over contact0
With switched-off indicatorNo
Motor drive integratedNo
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz36kA
Number of poles4
Type of control elementToggle
Degree of protection (IP)IP20
Rated voltage220 - 690V
Adjustment range short-term delayed short-circuit release- - -A
Position of connection for main current circuitFront side
Rated permanent current Iu250A
With under voltage releaseNo
Integrated earth fault protectionNo
Motor drive optionalYes
Device constructionBuilt-in device fixed built-in technique
Complete device with protection unitYes
DIN rail (top hat rail) mounting optionalYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

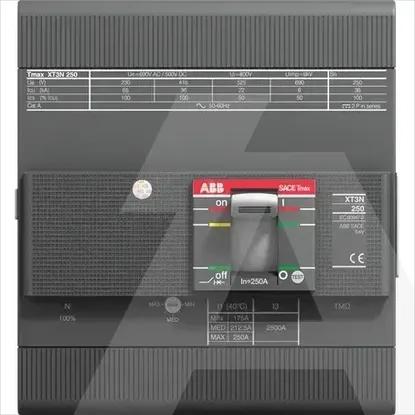

1SDA068070R1 | XT3N 250 TMD 250-2500 4P F F INN=100%
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power circuit-breaker for trafo/generator/installation protection
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Type of electrical connection of main circuit
Bolt connection
Adjustment range undelayed short-circuit release
2500 .. 2500A
Overload release current setting
175.0 .. 250A
Suitable for DIN rail (top hat rail) mounting
Number of auxiliary contacts as change-over contact
0
With switched-off indicator
Motor drive integrated
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
36kA
Number of poles
4
Type of control element
Toggle
Degree of protection (IP)
IP20
Rated voltage
220 .. 690V
Adjustment range short-term delayed short-circuit release
- .. -A
Position of connection for main current circuit
Front side
Rated permanent current Iu
250A
With under voltage release
Integrated earth fault protection
Motor drive optional
Device construction
Built-in device fixed built-in technique
Complete device with protection unit
DIN rail (top hat rail) mounting optional
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
