Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Position of connection for main current circuitFront side
Number of poles4
Rated voltage220 - 690V
Number of auxiliary contacts as normally open contact0
Degree of protection (IP)IP20
Motor drive integratedNo
Rated permanent current Iu250A
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Overload release current setting175.0 - 250A
Suitable for DIN rail (top hat rail) mountingNo
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz36kA
Type of control elementToggle
Type of electrical connection of main circuitBolt connection
With switched-off indicatorNo
Adjustment range short-term delayed short-circuit release- - -A
Adjustment range undelayed short-circuit release1250 - 2500A
Integrated earth fault protectionNo
Complete device with protection unitYes
Motor drive optionalYes
With under voltage releaseNo
DIN rail (top hat rail) mounting optionalYes
Device constructionBuilt-in device fixed built-in technique
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

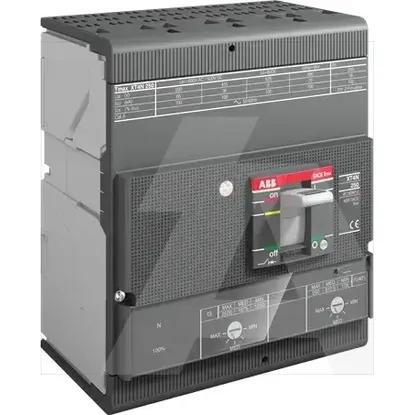

1SDA068111R1 | XT4N 250 TMA 250-2500 4P F F INN=100%
