Details
- •Low-voltage control systems
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Overload release current setting- - -A
Degree of protection (IP)IP20
Motor drive integratedNo
Position of connection for main current circuitFront side
Type of control elementToggle
Rated voltage220 - 690V
Type of electrical connection of main circuitBolt connection
With integrated under voltage releaseNo
Number of auxiliary contacts as change-over contact0
Motor drive optionalYes
Device constructionBuilt-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mountingNo
Adjustment range undelayed short-circuit release- - -A
Adjustment range short-term delayed short-circuit release- - -A
DIN rail (top hat rail) mounting optionalYes
With switched-off indicatorNo
Integrated earth fault protectionNo
Rated permanent current Iu160A
Number of poles3
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz70kA
Complete device with protection unitNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

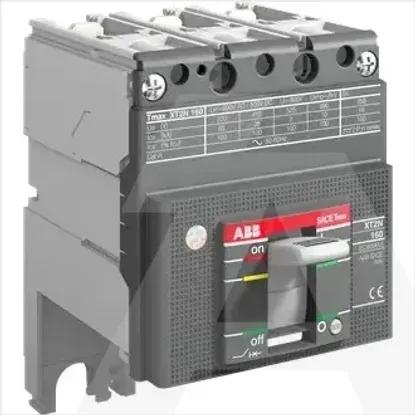

1SDA068165R1 | XT2H 160 TIJELO PREKIDAČA 3p F F
