Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Motor drive integratedNo
Type of control elementToggle
With integrated under voltage releaseNo
Rated permanent current Iu250A
Number of poles3
Rated voltage220 - 690V
Number of auxiliary contacts as change-over contact0
Degree of protection (IP)IP20
Type of electrical connection of main circuitBolt connection
Number of auxiliary contacts as normally closed contact0
Position of connection for main current circuitFront side
Overload release current setting- - -A
With switched-off indicatorNo
Adjustment range undelayed short-circuit release- - -A
Suitable for DIN rail (top hat rail) mountingNo
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz70kA
Integrated earth fault protectionNo
Motor drive optionalYes
Adjustment range short-term delayed short-circuit release- - -A
Device constructionBuilt-in device fixed built-in technique
DIN rail (top hat rail) mounting optionalYes
Complete device with protection unitNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

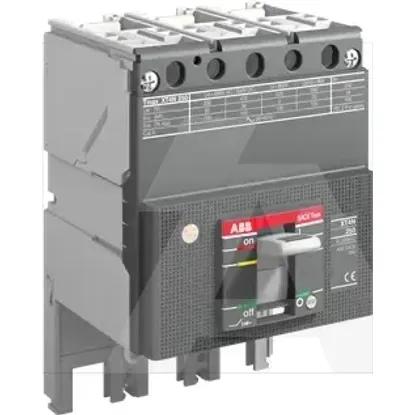

1SDA068175R1 | XT4H 250 3P F F
