Details
- •Low-voltage control systems
- •Switch disconnector (AC)
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V-kW
Motor drive integratedNo
Degree of protection (IP), front sideIP20
Rated operating voltage0 - 690V
InterlockableYes
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq-kA
Rated operation power at AC-23, 400 V-kW
Type of electrical connection of main circuitBolt connection
Version as maintenance-/service switchNo
Version as emergency stop installationNo
Version as main switchYes
Suitable for intermediate mountingNo
Suitable for distribution board installationYes
Suitable for front mounting centreNo
Degree of protection (NEMA)1
Motor drive optionalYes
Rated permanent current at AC-23, 400 V-A
Version as reversing switchNo
Switching power at 400 V-kW
Rated permanent current at AC-21, 400 V-A
Rated short-time withstand current lcw3kA
Suitable for floor mountingNo
Suitable for front mounting 4-holeNo
Voltage release optionalYes
Version as safety switchNo
Number of poles4
Rated permanent current Iu250A
Max. rated operation voltage Ue AC690V
Device constructionBuilt-in device fixed built-in technique
Colour housingGrey
Colour control elementWhite
Material housingPlastic
Type of control elementRocker lever
Number of switches1
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

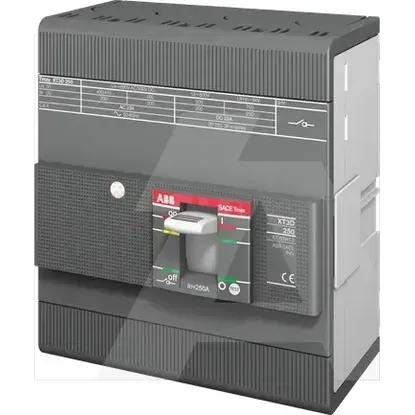

1SDA068211R1 | XT3D 250 4P F F
